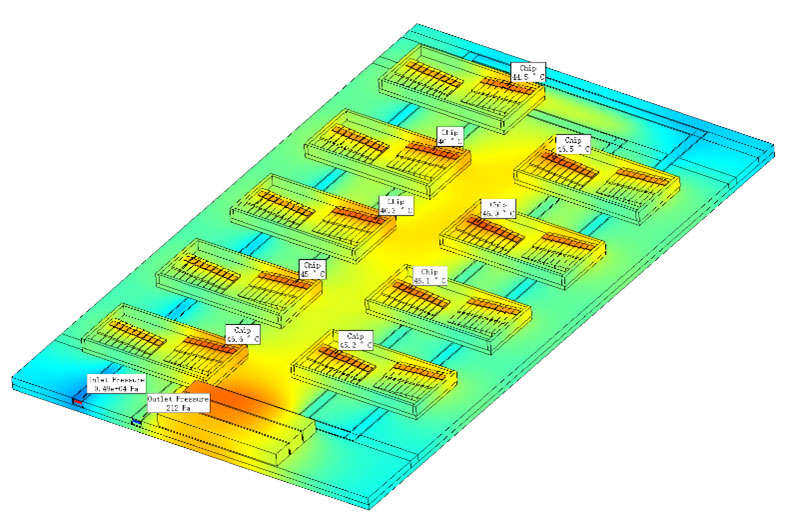

Liquid Cooling for Enhanced Thermal Cooling Efficiency: Unleashing Engineering Potential

July 25, 2023

At SJS Products, a Jamcor Company, we understand the critical importance of efficient thermal management in electronic systems. Engineers are well aware of the challenges posed by increasing power densities and the need to maintain optimal operating temperatures. That is why we offer many thermal management solutions. as a highly effective method to tackle these thermal cooling challenges head-on. In this paper we will discuss liquid cooling solutions as a highly effective method to address these thermal cooling challenges.

I. The Need for Liquid Cooling

Electronic devices, such as CPUs, GPUs, and power electronics, generate substantial amounts of heat during operation. Effectively dissipating this heat is crucial to ensure optimal performance, reliability, and longevity of these components. Traditional air-cooling methods often fall short in coping with the heat generated, leading to higher operating temperatures and potential performance degradation. Liquid cooling presents an ideal solution to overcome these limitations.

II. Capabilities and Advantages of Liquid Cooling

a. Superior Heat Dissipation:

Liquid cooling systems leverage the higher thermal conductivity of liquid coolants compared to air, enabling more efficient heat transfer from components to the cooling medium. This superior heat dissipation capability results in lower operating temperatures, reduced thermal throttling, and enhanced system performance.

b. Customizable Cooling Solutions:

Liquid cooling offers a high degree of customization, allowing engineers to tailor the cooling solution to specific system requirements. Custom liquid cooling setups enable the cooling of multiple components simultaneously, such as CPUs, GPUs, VRMs, and chipsets, ensuring comprehensive thermal management.

c. Enhanced Cooling Efficiency:

Liquid coolants, when compared to air, have higher thermal conductivities, meaning they can more effectively transport heat away from the components. This efficiency ensures a more uniform distribution of heat, reducing hotspots and maximizing overall cooling performance.

d. Noise Reduction:

Liquid cooling systems, especially those utilizing larger radiators and slower-spinning fans, operate at lower noise levels compared to traditional air coolers. This creates a quieter working environment and is particularly valuable for noise-sensitive applications.

e. System Optimization:

Liquid cooling allows engineers to push the thermal limits of components, enabling higher overclocking potentials for CPUs and GPUs. By maintaining lower operating temperatures, liquid cooling unlocks the full potential of hardware, optimizing system performance and stability.

III. Limitations and Considerations

a. Fluid Selection and Thermal Conductivity:

The choice of coolant fluid is a crucial consideration in liquid cooling. Various coolants, such as water, ethylene glycol, propylene glycol, and fluorocarbon liquids, offer different thermal conductivities. For instance, water exhibits higher thermal conductivity (approximately 0.6-0.7 W/(m·K)) compared to ethylene glycol (approximately 0.27-0.4 W/(m·K)) and propylene glycol (approximately 0.23-0.3 W/(m·K)). Selecting the most appropriate coolant requires considering factors like thermal conductivity, electrical conductivity, corrosion resistance, and freeze protection.

b. System Complexity and Maintenance:

Liquid cooling systems, especially custom setups, may require more advanced engineering knowledge for design and implementation. Additionally, regular maintenance, such as coolant monitoring and periodic cleaning, is essential to ensure optimal system performance and prevent any potential issues, such as clogs or degradation of coolant properties.

c. Space and Compatibility:

Liquid cooling systems typically require additional space within the system for radiators, pumps, and tubing. Careful consideration of the available space and system compatibility is necessary to ensure proper installation and functionality.

d. Cost Considerations:

Liquid cooling solutions, particularly custom setups, can be more expensive compared to traditional air-cooling methods. The cost includes the components such as water blocks, radiators, pumps, and tubing. However, the improved cooling efficiency, system optimization, and potentially increased hardware lifespan often justify the investment.

IV. Components

a. Water Block or CPU/GPU Block:

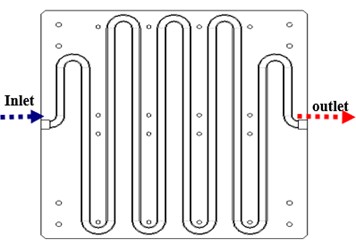

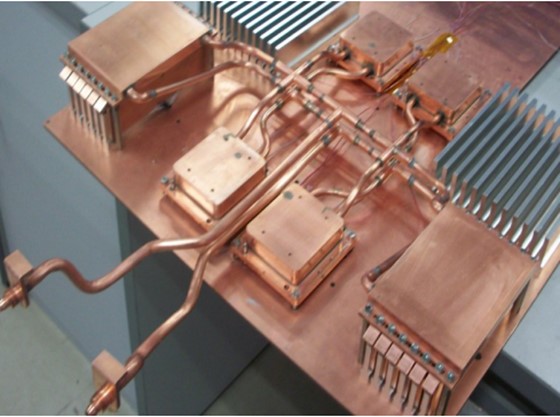

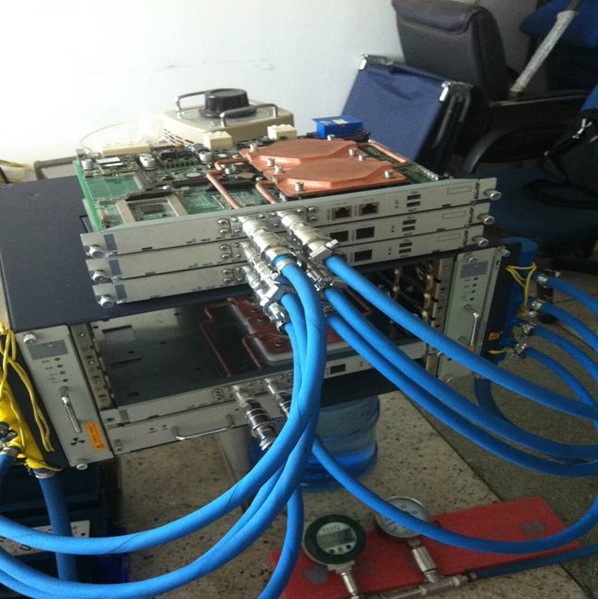

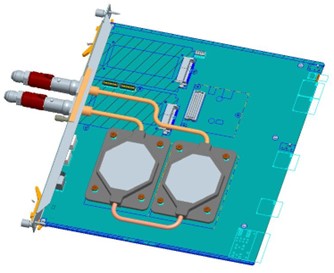

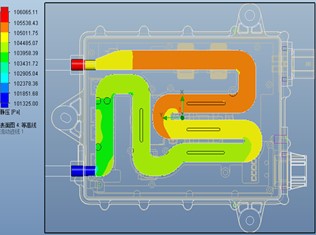

The water block, also known as a CPU or GPU block, is a device specifically designed to make direct contact with the heat source, such as a CPU or GPU. It is typically made of copper or other high thermal conductivity materials and features channels or fins to facilitate the transfer of heat from the component to the liquid coolant.

b. Pump:

The pump is responsible for circulating the liquid coolant through the system. It generates the necessary flow rate and pressure to ensure proper coolant movement. Pumps can vary in design, including centrifugal pumps or more compact and quieter options like magnetic levitation (maglev) pumps. The pump is typically mounted in the loop and can be integrated into the water block or placed externally.

c. Radiator:

The radiator is a heat exchanger that helps dissipate heat from the liquid coolant into the surrounding air. It consists of a series of tubes or fins that increase the surface area available for heat transfer. Fans are typically attached to the radiator to facilitate airflow and enhance cooling efficiency. Radiators are available in various sizes and configurations, allowing for customization based on cooling requirements and available space.

d. Fans:

Fans play a critical role in assisting with heat dissipation. They are mounted on the radiator and provide airflow to remove heat from the coolant. The fans can be controlled to adjust the speed and optimize the cooling performance based on temperature requirements. High-performance fans with features such as static pressure optimization and low noise levels are often preferred for liquid cooling systems.

e. Tubing:

Tubing is used to connect various components of the liquid cooling system, allowing the flow of liquid coolant between them. It is typically made of flexible materials such as rubber, PVC, or silicone. The tubing should have suitable inner diameter and thickness to ensure proper flow rate and minimize resistance. Tubing can be transparent or opaque, depending on aesthetic preferences or for leak detection purposes.

f. Coolant:

The coolant, also known as the working fluid, is a liquid that carries heat away from the components. Common coolants include mixtures of water and additives such as ethylene glycol or propylene glycol. The choice of coolant depends on factors such as thermal conductivity, electrical conductivity, corrosion resistance, and freeze protection. Coolants should be non-conductive to prevent any risk of electrical damage if a leak occurs.

g. Reservoir:

The reservoir serves as a storage and filling point for the liquid coolant. It helps maintain an adequate supply of coolant in the system, ensures continuous circulation, and allows for easy monitoring and topping up of the coolant level. The reservoir can be integrated into the pump or be a separate component.

h. Fittings and Connectors:

Fittings and connectors are used to join the various components of the liquid cooling system, including the water block, pump, radiator, and tubing. They provide secure and leak-free connections, ensuring proper fluid flow throughout the system. Fittings come in various sizes and types, such as barbs, compression fittings, or quick-connect fittings, and may require specific tools for installation.

V. Conclusion:

Liquid cooling solutions offered by SJS Products, a Jamcor Company, provide engineers with an effective thermal management tool to address the challenges posed by heat generation in electronic systems. Liquid cooling systems offer superior heat dissipation, customizable cooling solutions, enhanced cooling efficiency, noise reduction, and system optimization benefits. By carefully considering factors such as fluid selection, system complexity, space requirements, and cost considerations, engineers can harness the full potential of liquid cooling and drive their engineering projects to new heights. At SJS Products, a Jamcor Company, we specialize in providing cutting-edge liquid cooling solutions tailored to your specific needs. Our expertise in manufacturing engineering ensures high-quality and reliable products. Contact us today to discover how our liquid cooling solutions can revolutionize your thermal management strategies and propel your engineering endeavors forward.
