In the fast-paced world of electronics manufacturing, ensuring optimal performance and longevity of electronic devices is paramount. Heat management is a critical factor in achieving these goals. As a manufacturing engineering company, we understand the significance of efficient thermal cooling solutions, and we are here to provide you with insights into the need, capabilities, materials, designs, and limitations of heat sinks for thermal cooling in electronic devices.
1. The Need for Effective Thermal Cooling:
Modern electronic devices continue to shrink in size while packing more processing power. This trend has led to increased heat generation in compact spaces, causing the risk of overheating. Left unaddressed, excessive heat can degrade device performance, reduce lifespan, and even lead to catastrophic failures. Heat sinks dissipate excess heat across a larger surface area allowing the heat to dissipate more easily to the surrounding environment. They are widely employed in various applications, including computers, mobile devices, power electronics, and automotive systems, where the dissipation of heat is essential for maintaining safe operating temperatures and extending the lifespan of critical components.
2. Capabilities of Heat Sinks:
Heat sinks play a vital role in thermal management by efficiently transferring heat away from heat-generating components. Their key capabilities include:
a. Heat Dissipation: Heat sinks absorb thermal energy from electronic components and disperse it into the surrounding environment through conduction, convection, and radiation.
b. Temperature Regulation: By maintaining components at acceptable temperatures, heat sinks prevent thermal throttling and ensure consistent performance.
c. Enhanced Reliability: Proper cooling extends the operational lifespan of electronic devices, reducing the risk of premature failures.
d. Compact Design: Heat sinks are engineered to be compact yet effective, making them suitable for use in devices with limited space.
3. Materials for Heat Sink Construction:
Selecting the right material is crucial to designing efficient heat sinks. Commonly used materials include:
a. Copper: The thermal conductivity of copper is approximately 385-400 W/m·K. Copper is an excellent conductor of heat, making it one of the best materials for heat sink applications. Its high thermal conductivity allows it to rapidly transfer heat away from the heat-generating component to the heat sink's fins and eventually to the surrounding air. Copper heat sinks are highly effective but can be heavier and costlier compared to aluminum.
b. Aluminum: The thermal conductivity of aluminum is approximately 205-250 W/m·K. Aluminum is a popular choice for heat sinks due to its reasonable thermal conductivity, lightweight nature, and cost-effectiveness. While its thermal conductivity is lower than copper, aluminum heat sinks are still efficient at transferring heat, especially when designed properly to optimize surface area and airflow.
c. Aluminum Alloys: The thermal conductivity of aluminum alloys varies based on alloy composition, but typically falls within the range of 100-200 W/m·K. Aluminum alloys are mixtures of aluminum with other elements, designed to enhance specific properties. While the thermal conductivity of aluminum alloys is lower than that of pure aluminum, they are still commonly used in heat sink manufacturing due to their balanced combination of thermal performance, weight, and cost.
4. Heat Sink Designs:
Heat sink design is a precise blend of art and engineering. Our team of experts crafts innovative designs tailored to specific device requirements, including:
a. Fin Arrangement: The arrangement, size, and spacing of fins influence heat dissipation efficiency and airflow dynamics.
b. Base Configuration: The shape and surface area of the base impact how efficiently heat is transferred from the component to the fins.
c. Thermal Solution Integration: Heat pipes and vapor chambers can be incorporated into heat sinks to further enhance heat transfer capabilities.
d. Advanced Coatings: Coatings like thermal pastes and ceramic materials can optimize thermal interface between components and heat sinks.
5. Manufacturing Processes
Forming
- Extrusion: This method involves forcing heated metal through a die to create the desired shape. The heat sink's fins, base, and other features are formed during this process. The extruded metal is then cut to the required lengths.
- Casting: In casting, molten metal is poured into a mold that has the shape of the heat sink. Once the metal solidifies, the mold is removed, leaving behind the rough heat sink. Additional machining and finishing processes are usually required after casting to achieve the desired specifications.
- Cold Forging: A billet of raw materials, usually aluminum, is enclosed into a die under high pressure until the desired form is achieved.

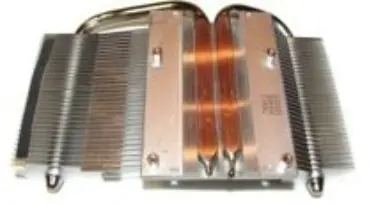

- Stacked Fin: Thin sheets are cut to desired shape and stacked closely together with uniform gaps in between to allow for uniform air flow. This form is best used with heat pipe integration.
Machining:
After extrusion or casting, the rough heat sink may undergo machining processes such as milling, drilling, and cutting. Machining ensures precise dimensions, smooth surfaces, and the creation of finer details like mounting holes or specialized features. Creating a uniformly flat and smooth surface ensures proper heat transfer between the heat sink and the electronic components.
Finishing:
The heat sink is often subjected to surface treatments for enhanced performance and aesthetics:
- Anodizing: Aluminum heat sinks can be anodized to create a protective oxide layer on the surface, improving corrosion resistance and providing a base for coloring.
- Electroplating: Copper or other metals can be electroplated onto the heat sink to improve its surface properties or achieve a specific appearance.
- Coating: The heat sink's surface may be coated with a thermal interface material (TIM) to enhance the contact and heat transfer between the heat sink and the electronic component.
6. Limitations and Overcoming Challenges:
While heat sinks offer remarkable benefits, they have certain limitations and challenges:
a. Size Constraints: In smaller devices, fitting a heat sink might be challenging, necessitating creative design solutions. Incorporating vapor chambers or heat pipes can reduce overall size of the thermal management system but will increase overall costs.
b. Thermal Resistance: Imperfect contact between components and heat sinks can lead to higher thermal resistance. Thermal interface materials can be used to improve the contact area between the heat sink and the thermal load.
c. Aesthetics and Form Factor: Balancing thermal performance with device aesthetics and form factor requires careful consideration.
At SJS Products, a Jamcor Corporation, we specialize in crafting cutting-edge heat sink solutions that address the unique thermal challenges of your electronic devices. Our expertise in material selection, innovative designs, and overcoming limitations ensures that your products achieve optimal performance, reliability, and longevity. Partner with us to elevate your thermal management game and pave the way for the next generation of electronics. For further inquiries or to discuss how we can tailor heat sink solutions for your specific needs, please contact our team of experts.
